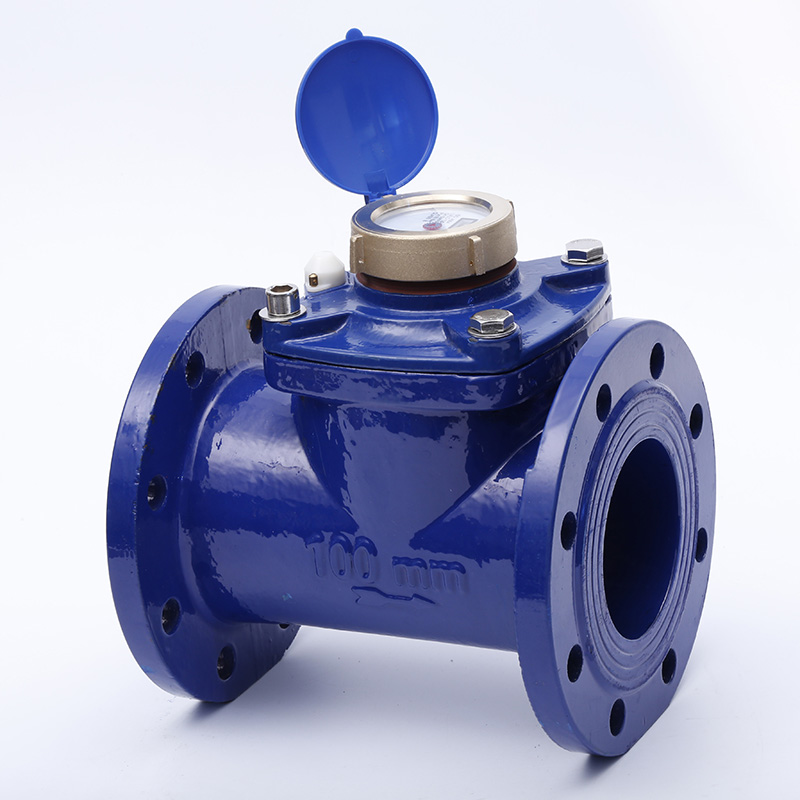

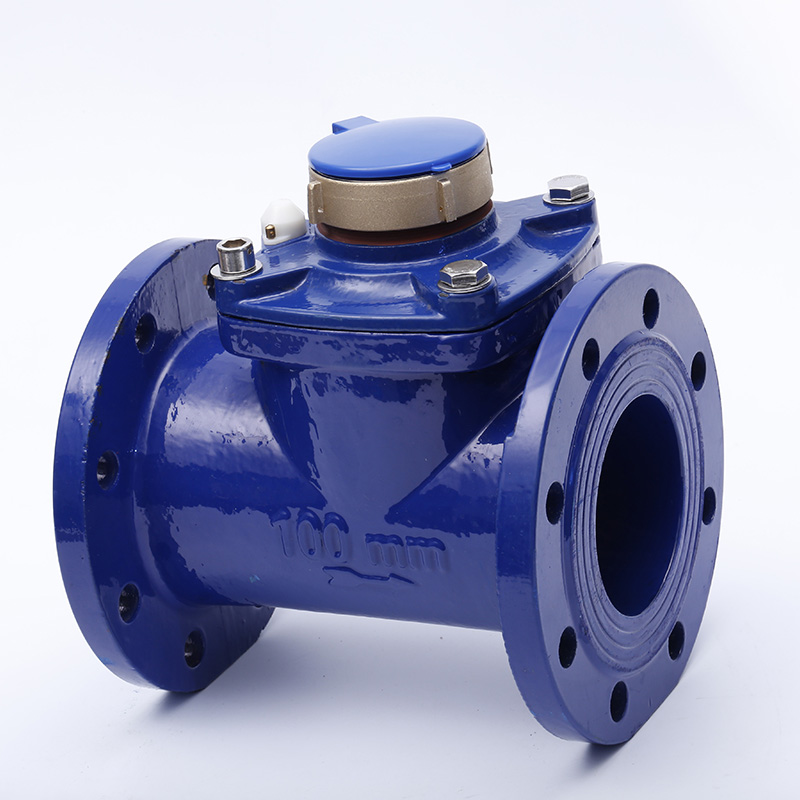

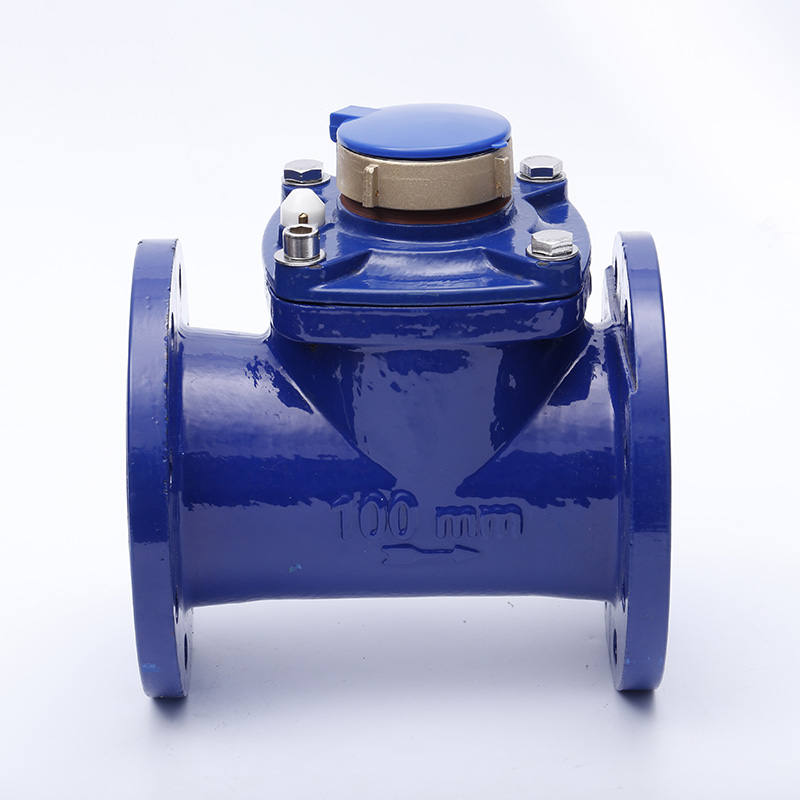

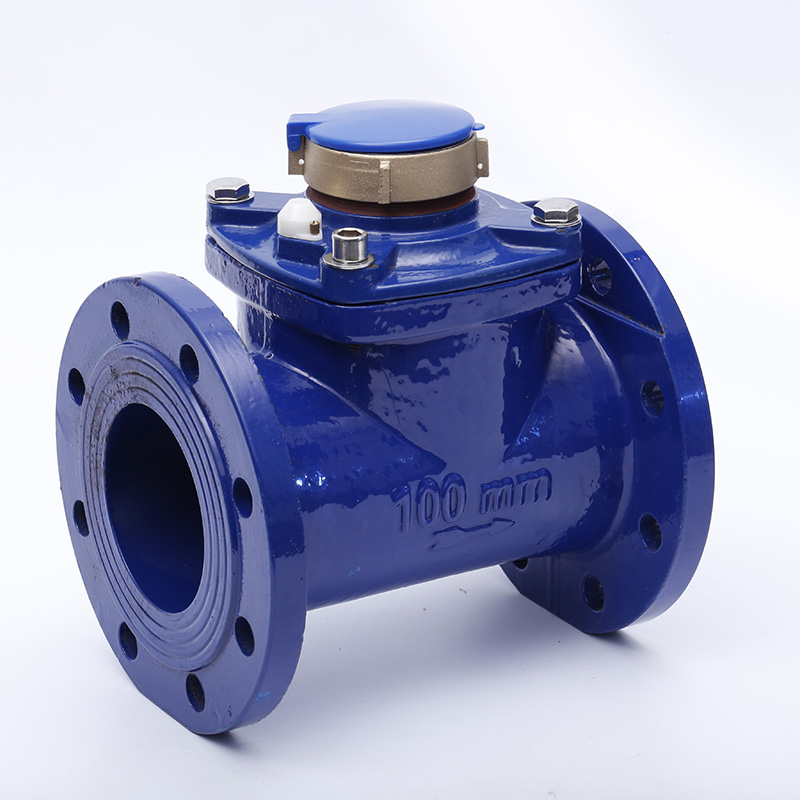

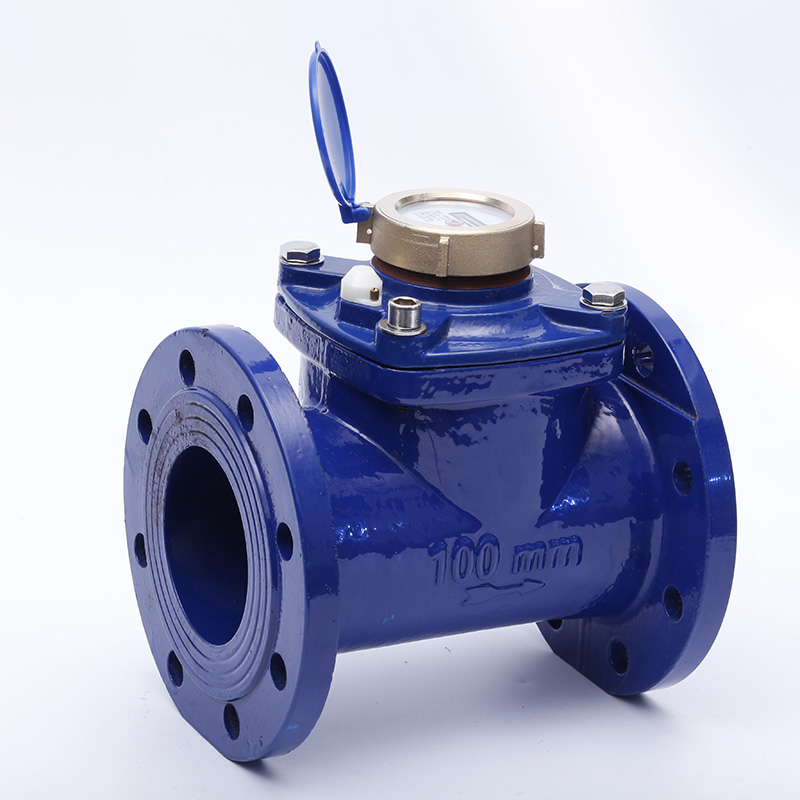

Woltmann Industrial Flange Water Meter

Ningbo Haishu Yongzhou Meters Co.,Ltd is forcus on delivering the high-quality water meters to our customers in China. We offer a diverse range of optings, including woltmann industrial flange water meter,multi jet water meter and water meter parts . We provide high quality water meters with competitive price to meet the customers market . We are expecting to build long-term business relationship with customers.

Send Inquiry

Product Description

Yongzhou woltmann industrial flange water meters are produced according to the standard ISO4064 and highly suitable to the industrial use . The quality is guaranteed with a 5-years warranty . We also offer brand printing as per the request.

Product feature

1.Type name: Woltmann removable type
2.Model No.: LXLG-100
3.Standard :ISO 4064 Class B
4.Material: Cast iron
5.Dry-dial,magnetic type
6.Horizontal installation
7.Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span
8.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
9.Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.
10.Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h						L/h		m³
50	B	30	15		3	0.45		150		0.01	9999999
65	B	50	25		5	0.75		170		0.01	9999999
80	B	80	40		8	1.2		280		0.01	9999999
100	B	120	60		12	1.8		400		0.01	9999999
125	B	200	100		20	3		800		0.01	9999999
150	B	300		150	30		4.5		1200	0.01	9999999
200	B	500		250	50		7.5		1500	0.01	9999999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Competitive Advantage:

Reasonable price with good quality
Long time guarantee
100% tested
On time delivery

Minimum Order Quantity:	50pcs
Price:
Packaging Details:	Wooden box
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	5000pcs/week
